1400+ Mapping Symbols in AutoCAD DWG format

TCI has been actively involved in the production of AutoCAD maps for over 10 years and during that time we have developed and acquired a great number of mapping symbols. Our new mapping symbol library was based on this collection but has been enhanced and increased by the addition of over 1000 standard mapping symbols derived from leading public agencies and associations.

These sources include the US Bureau of Land Management, the US Geological Survey, the US Forest Service and the American Public Works Association.

The Symbol collection is organized into 10 functional libraries and each library includes detailed descriptions for every symbol. Each block has been processed to conform to a specific standard (entities are drawn on layer 0 and are generally sized to be about 1 unit). All drawings are delivered as Release 12 DWG files to allow use by a wide variety of applications including IntelliCAD, PowerCAD, Microstation, ArcCAD, ArcView and every version of AutoCAD LT.

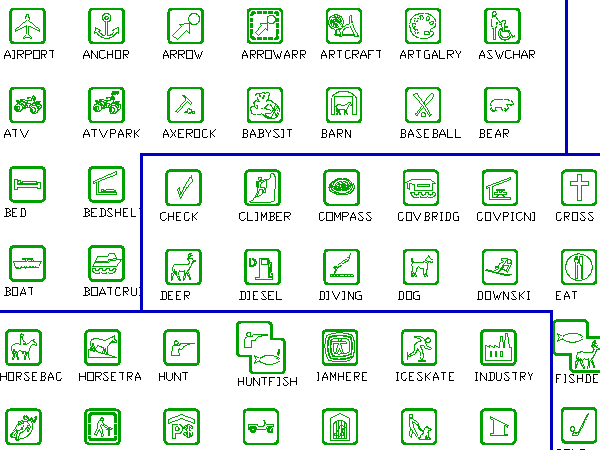

High quality images at any scale
Our mapping symbol collection is made up of 10 libraries totaling over 1400 symbols. Each block has been developed to deliver optimum quality while minimizing files size, in fact the average file size for entire collection is under 5K bytes. Take a look at our BIKE symbol from a distance, then up close And then real close. The symbols were created with AutoCAD R12 and do not use hatching for solid fills, making them extremely compact and fully compatible with all applications that read a standard R12 DWG file.

The average size of the blocks in our collection is less than 5,000 bytes.

The MT-Symbol collection is made up of 10 libraries
 ·  BLM Symbols 123 blocks
 ·  Linework Labeling Symbols 163 block
 ·  Miscellaneous Symbols 53 blocks
 ·  North Arrows 35 blocks
 ·  Public Works Symbols 247 blocks
 ·  Recreational Symbols 174 blocks
 ·  Road Sign Symbols 165 blocks
 ·  Scale Bars 52 blocks
 ·  USGS Symbols 400 blocks
 ·  Vegetation Symbols 18 blocks

The Linesym Library
The Linesym library is a little different than the other libraries, in fact it is derived from them. This library was specifically designed for labeling or "symbolizing" linework. All blocks are drawn to fit inside of a 1 unit area and each symbol has 4 representations: Left, Right, Solid Left and Solid Right. For details on our Linework Symbolizer, see the full MT-Symbol page.
